AOD Pumps

Don't see what you need? Give us a call for other FTI pumps.

ItemPRICE
FTI AIR

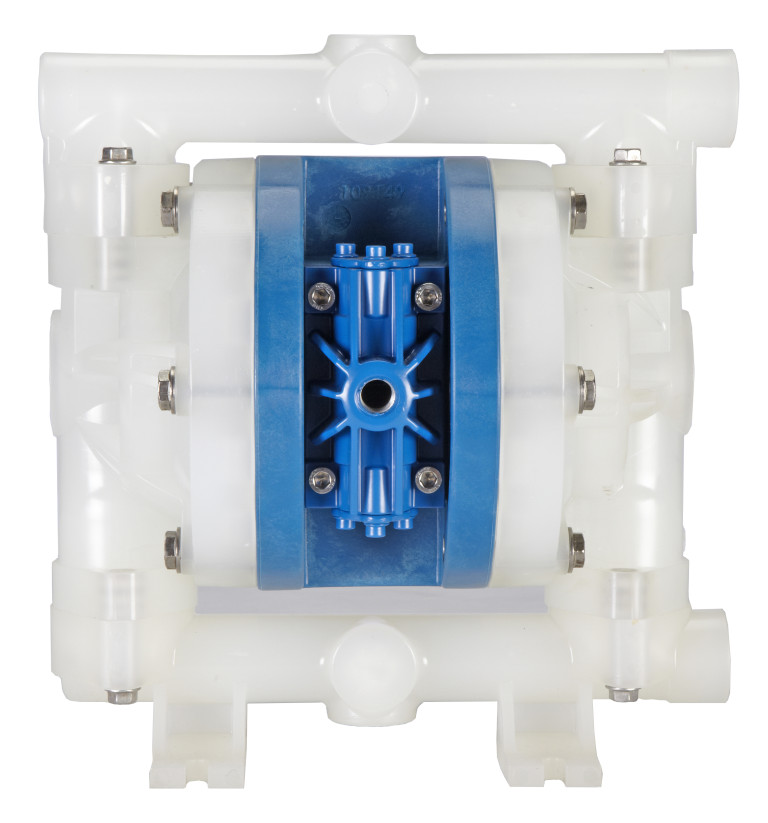

1/2" Polypropylene FTI AIR AOD pump with, PTFE w/ santoprene diaphragms, PTFE balls, polypropylene seats, FEP encapsulated o-rings. NPT end port connection


Features:

Diaphragm: PTFE/Santoprene

Pump Material: Polypropylene (Wetted), Glass Fiber Reinforced Polypropylene (Non-Wetted)
Ball Material: PTFE

Pump Connection: 1/2" FNPT end port
Max Flow: 19 GPM
Max Pressure: 100 PSI


Air Connection: 1/4" FNPT
Max Air Pressure: 100 PSI

 - FT05P-PP-2TPC-N1		 $763.00
FTI AIR

1/2" Polypropylene FTI AIR AOD pump with, santoprene diaphragms and balls, polypropylene seats, and santoprene o-rings. NPT end port connection


Features:

Diaphragm: Santoprene

Pump Material: Polypropylene (Wetted), Glass Fiber Reinforced Polypropylene (Non-Wetted)
Ball Material: Santoprene

Pump Connection: 1" FNPT end port
Max Flow: 19 GPM
Max Pressure: 100 PSI


Air Connection: 1/4" FNPT
Max Air Pressure: 100 PSI

 - FT05P-PP-RRPR-N1		 $713.00
FTI Air

1/2" PVDF FTI AIR AOD pump with, PTFE w/ santoprene diaphragms, PTFE balls, polypropylene seats, FEP encapsulated o-rings. NPT center connection


Features:

Diaphragm: PTFE w/ Santo

Pump Material: PVDF (Wetted), Glass Fiber Reinforced Polypropylene (Non-Wetted)
Ball Material: PTFE

Pump Connection: 1/2" FNPT center
Max Flow: 19 GPM
Max Pressure: 100 PSI


Air Connection: 1/4" FNPT
Max Air Pressure: 100 PSI

 - FT05V-PP-2TVC-N2		 $1462.00
FTI AIR

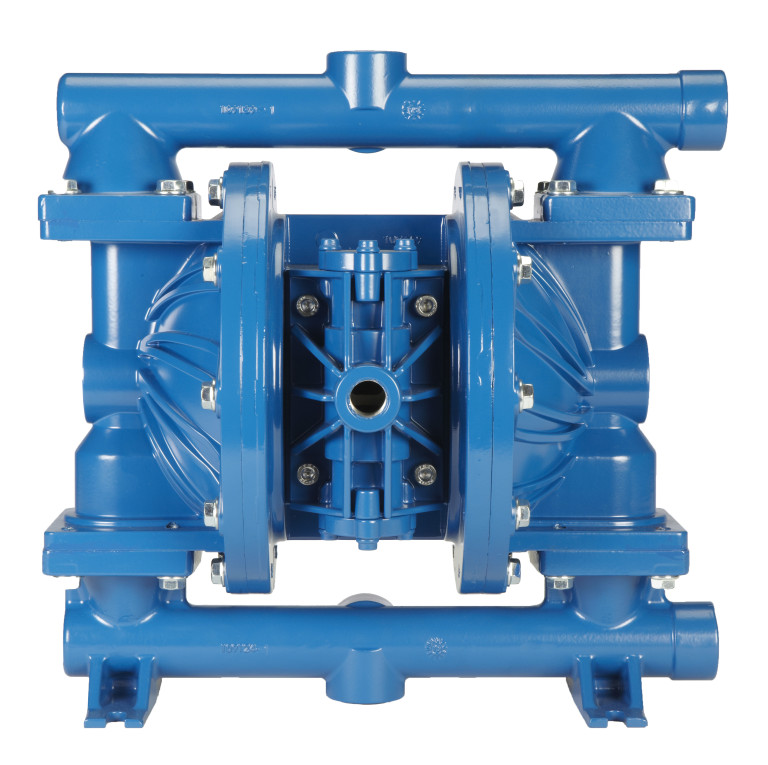

1" Aluminum FTI AIR AOD pump with, PTFE w/santoprene diaphragms and PTFE balls, aluminum seats, and PTFE o-rings. NPT end port connection


Features:

Diaphragm: PFTE/Santoprene

Pump Material: Aluminum (Wetted & Non-Wetted)
Ball Material: PTFE

Pump Connection: 1" FNPT end port
Max Flow: 51 GPM
Max Pressure: 120 PSI


Air Connection: 1/2" FNPT
Max Air Pressure: 120 PSI

 - FT10A-AA-2TAT-N1		 $995.00
FTI AIR

1" Aluminum FTI AIR AOD pump with, Buna-N diaphragms and Buna-N balls, aluminum seats, Buna-N o-rings . NPT end port connection

Features:

Diaphragm: Buna N

Pump Material: Aluminum (Wetted & Non-Wetted)
Ball Material: Buna N

Pump Connection: 1" FNPT end port
Max Flow: 51 GPM
Max Pressure: 120 PSI


Air Connection: 1/2" FNPT
Max Air Pressure: 120 PSI

 - FT10A-AA-BBAB-N1		 $869.00
FTI AIR

1" Aluminum FTI AIR AOD pump with, santoprene diaphragms and balls, aluminum seats, and PTFE o-rings. NPT end port connection


Features:

Diaphragm: Santoprene

Pump Material: Aluminum (Wetted & Non-Wetted)
Ball Material: Santoprene

Pump Connection: 1" FNPT end port
Max Flow: 51 GPM
Max Pressure: 120 PSI


Air Connection: 1/2" FNPT
Max Air Pressure: 120 PSI

 - FT10A-AA-RRAT-N1		 $833.00
FTI AIR

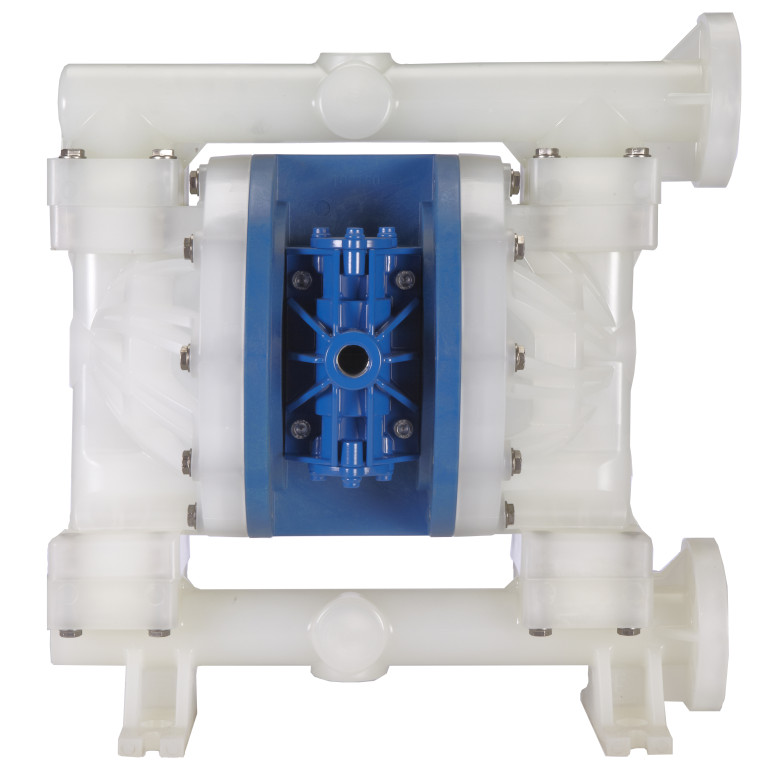

1" Polypropylene FTI AIR AOD pump with, PTFE w/ santoprene diaphragms, PTFE balls, polyproplyne seats, FEP encapsulated o-rings . Flanged end port connections


Features:

Diaphragm: PTFE/Santoprene

Pump Material: Polypropylene (Wetted), Glass Fiber Reinforced Polypropylene (Non-Wetted)
Ball Material: PTFE

Pump Connection: 1" Flanged end port
Max Flow: 49 GPM
Max Pressure: 100 PSI


Air Connection: 1/2" FNPT
Max Air Pressure: 100 PSI

 - FT10P-PP-2TPC-F1		 $1171.00
FTI AIR

1" Polypropylene FTI AIR AOD pump with, santoprene diaphragms and balls, polypropylene seats, and santoprene o-rings, flanged end port connection


Features:

Diaphragm: Santoprene

Pump Material: Polypropylene (Wetted), Glass Fiber Reinforced Polypropylene (Non-Wetted)
Ball Material: Santoprene

Pump Connection: 1" Flanged end port
Max Flow: 49 GPM
Max Pressure: 100 PSI


Air Connection: 1/2" FNPT
Max Air Pressure: 100 PSI

 - FT10P-PP-RRPR-F1		 $1066.00
FTI Air

1" Stainless Steel FTI AIR AOD pump with, PTFE w/ Santoprene diaphragms, PTFE balls, Stainless steel seats, FEP encapsulated o-rings. NPT end port connection


Features:

Diaphragm: PTFE/Santoprene

Pump Material: 316 Stainless Steel (Wetted), Aluminum (Non-Wetted)
Ball Material: PTFE

Pump Connection: 1" FNPT end port
Max Flow: 51 GPM
Max Pressure: 120 PSI


Air Connection: 1/2" FNPT
Max Air Pressure: 120 PSI

 - FT10S-AA-2TST-N1		 $2150.00
FTI Air

1" PVDF FTI AIR AOD pump with, PTFE w/ santoprene diaphragms, PTFE balls, polypropylene seats, FEP encapsulated o-rings. Flange end port connection


Features:

Diaphragm: PTFE

Pump Material: PVDF (Wetted), Glass Fiber Reinforced Polypropylene (Non-Wetted)
Ball Material: PTFE

Pump Connection: 1" flange end port
Max Flow: 49 GPM
Max Pressure: 100 PSI


Air Connection: 1/2" FNPT
Max Air Pressure: 100 PSI

 - FT10V-PP-2TVC-F1		 $2609.00
FTI AIR

1.5" Aluminum FTI AIR AOD pump with, santoprene diaphragms, balls, and seats. No O-rings. NPT center port connection


Features:

Diaphragm: Santoprene

Pump Material: Aluminum (Wetted & Non-Wetted)
Ball Material: Santoprene

Pump Connection: 1.5" FNPT center port
Max Flow: 133 GPM
Max Pressure: 120 PSI


Air Connection: 1/2" FNPT
Max Air Pressure: 120 PSI

 - FT15ZA-AA-RRR0-N2		 $1401.00
FTI AIR

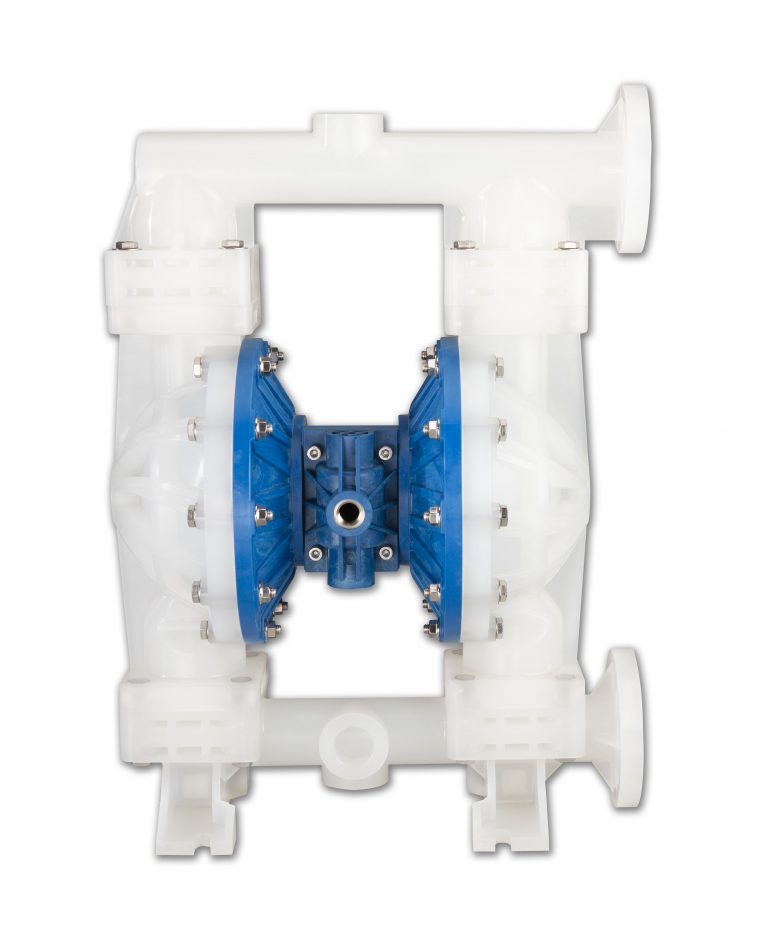

1.5" Polypropylene FTI AIR AOD pump with, santoprene diaphragms and balls, polypropylene seats, and santoprene orings. NPT end port connection


Features:

Diaphragm: Santoprene

Pump Material: Polypropylene (Wetted), Glass Fiber Reinforced Polypropylene (Non-Wetted)
Ball Material: Santoprene

Pump Connection: 1.5" FNPT end port
Max Flow: 125 GPM
Max Pressure: 100 PSI


Air Connection: 1/2" FNPT
Max Air Pressure: 100 PSI

 - FT15ZP-PP-RRPR-N1		 $2067.00
FTI AIR

2" Aluminum FTI AIR AOD pump with, santoprene diaphragms and balls, santoprene seats. NPT center port connection


Features:

Diaphragm: Santoprene

Pump Material: Aluminum (Wetted & Non-Wetted
Ball Material: Santoprene

Pump Connection: 3/4" FNPT center port
Max Flow: 156 GPM
Max Pressure: 120 PSI


Air Connection: 3/4" FNPT
Max Air Pressure: 120 PSI

 - FT20A-AA-RRR0-N2		 $1650.00
FTI Air

2" Polypropylene FTI AIR AOD pump with, PTFE w/ santoprene diaphragms, PTFE balls, polypropylene seats, FEP encapsulated o-rings. Flange end port connection


Features:

Diaphragm: PTFE/Santoprene

Pump Material: Polypropylene (Wetted), Glass Fiber Reinforced Polypropylene (Non-Wetted)
Ball Material: PTFE

Pump Connection: 2" FNPT end port
Max Flow: 154 GPM
Max Pressure: 100 PSI


Air Connection: 3/4" FNPT
Max Air Pressure: 100 PSI

 - FT20P-PP-2TPC-F1		 $3523.00
FTI Air

2" Polypropylene FTI AIR AOD pump with, Santoprene diaphragms, Santoprene balls, polypropylene seats, Santoprene o-rings. Flange end port connection


Features:

Diaphragm: Santoprene

Pump Material: Polypropylene (Wetted), Glass Fiber Reinforced Polypropylene (Non-Wetted)
Ball Material: Santoprene

Pump Connection: 2" FNPT end port
Max Flow: 154 GPM
Max Pressure: 100 PSI


Air Connection: 3/4" FNPT
Max Air Pressure: 100 PSI

 - FT20P-PP-RRPR-F1		 $3113.00
