Manufacturer: MP Pumps
Manufacturer Model: MP33601
Part Number: MP33601
$2850.00 for 1+
2CT-3 PumPAK, Cast iron construction, To accept a close coupled motor with a 1.125" shaft sleeve bore, 5.88" impeller, T-21 seal
Specifications:
Suction and Discharge: 3" x 3" NPT Material: Cast Iron Maximum Flow: 400 GPM
Maximum Head: 125'
Maximum Solid: 1.5"
Specifications:
Suction and Discharge: 3" x 3" NPT Material: Cast Iron Maximum Flow: 400 GPM
Maximum Head: 125'
Maximum Solid: 1.5"
Please see below for the MP Pump MP33601 exploded view and parts list to help find the correct part numbers to each replacement part if you're only needing specific items and not having to replace the pump. If you feel a repair kit is all that is necessary to return your MP Pump MP33601 back to factory performance, please see the bottom of the page under the "Related Products" section for the MP33601 seal kit.

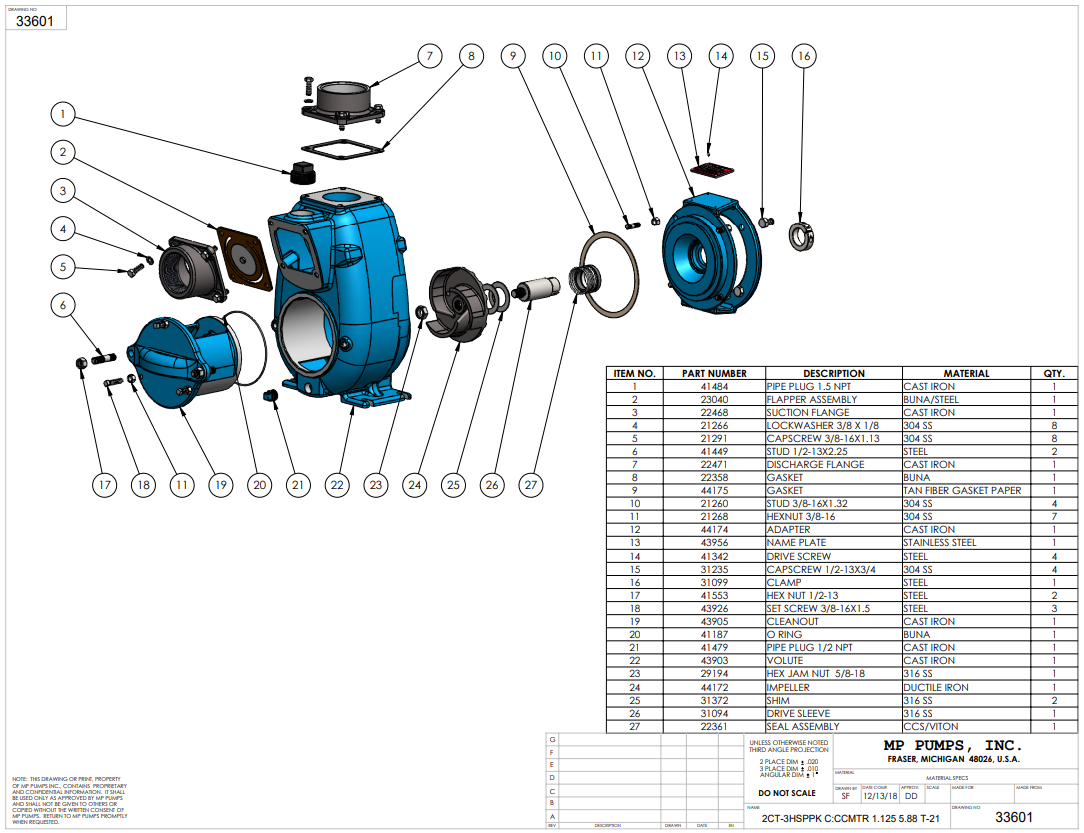

EXPLODED VIEW AND PARTS LIST
MP33601 Drawing
EXPLODED VIEW AND PARTS LIST
MP33601 Drawing
