Manufacturer: MP Pumps
Manufacturer Model: MP44188
Part Number: MP44188
$3121.00 for 1+
2CT-3 PumPAK, Cast iron construction, To accept a close coupled motor with a 215TC face, 5.63" impeller, Carbon/Ceramic/Viton seal
Specifications:
Suction and Discharge: 3" x 3" NPT Material: Cast Iron Maximum Flow: 400 GPM
Maximum Head: 125'
Maximum Solid: 1.5"
Specifications:
Suction and Discharge: 3" x 3" NPT Material: Cast Iron Maximum Flow: 400 GPM
Maximum Head: 125'
Maximum Solid: 1.5"
Please see below for the MP Pump MP44188 exploded view and parts list to help find the correct part numbers to each replacement part if you're only needing specific items and not having to replace the pump. If you feel a repair kit is all that is necessary to return your MP Pump MP44188 back to factory performance, please see the bottom of the page under the "Related Products" section for the MP44188 seal kit.

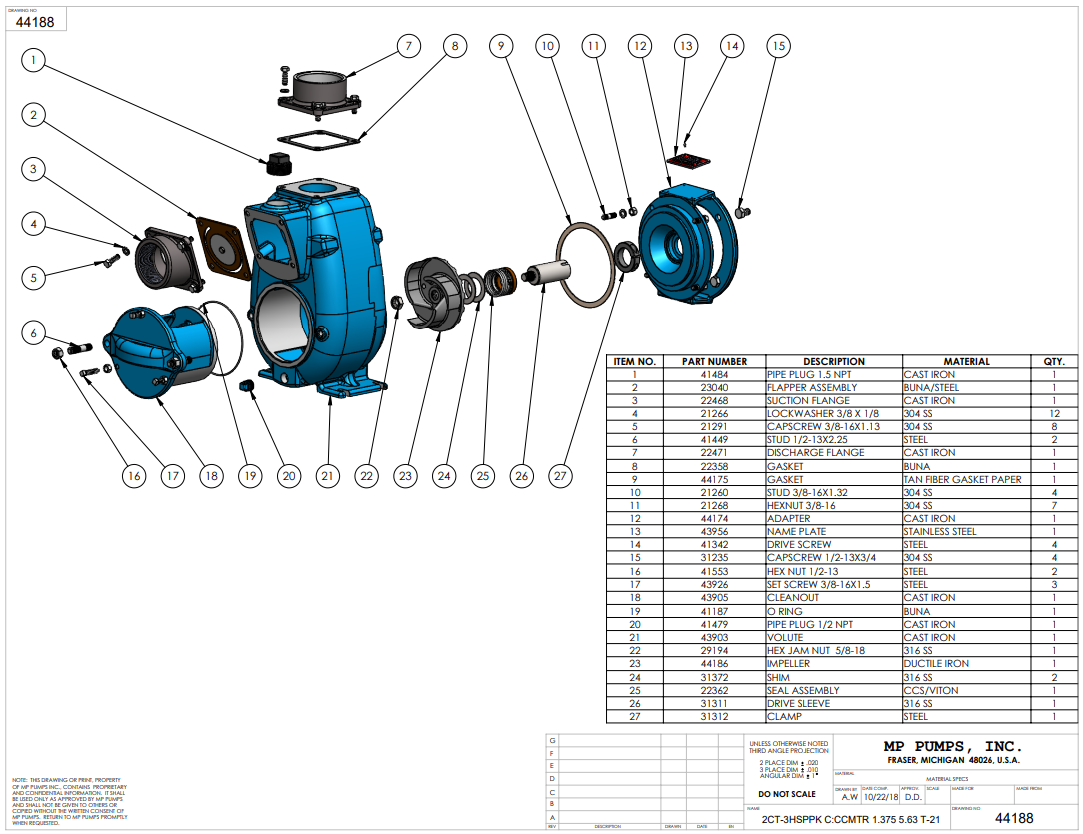

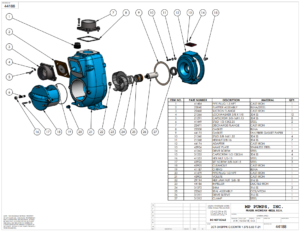

EXPLODED VIEW AND PARTS LIST
MP44188 Drawing
