Manufacturer: MP Pumps
Manufacturer Model: MP39336
Part Number: MP39336
$1275.00 for 1+
MDX Pump, Aluminum construction, Brushless 24V DC motor, Carbon/Ceramic/Viton seal, Base included
Specifications:
Suction and Discharge: 1" X 1" NPT Material: Aluminum Maximum Flow: 25 GPM
Maximum Head: 20'
Specifications:
Suction and Discharge: 1" X 1" NPT Material: Aluminum Maximum Flow: 25 GPM
Maximum Head: 20'
Please see below for the MP Pump MP39336 exploded view and parts list to help find the correct part numbers to each replacement part if you're only needing specific items and not having to replace the pump. If you feel a repair kit is all that is necessary to return your MP Pump MP39336 back to factory performance, please see the bottom of the page under the "Related Products" section for the MP39336 seal kit.

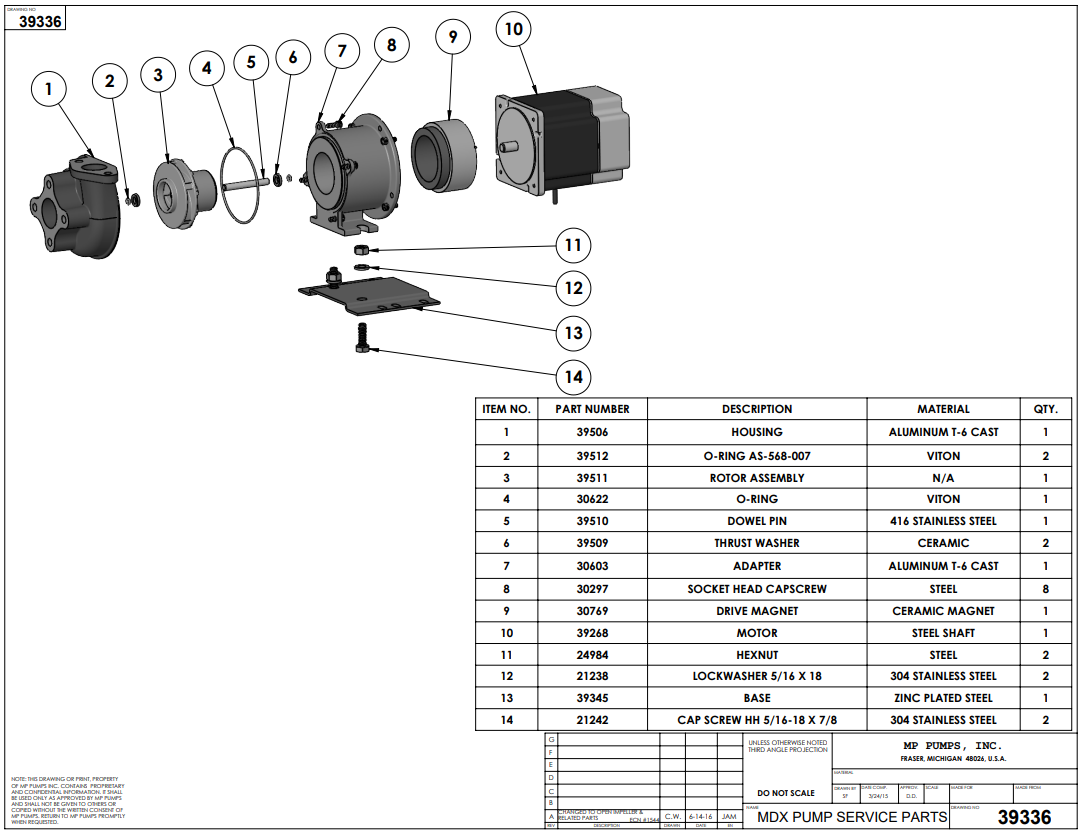

EXPLODED VIEW AND PARTS LIST
MP39336 Drawing
EXPLODED VIEW AND PARTS LIST
MP39336 Drawing
