Manufacturer: MP Pumps
Manufacturer Model: MP50412
Part Number: MP50412
$494.00 for 1+
SBX pump aluminum construction, 12V DC permanent magnet motor, 2.5" impeller trim, Carbon/ Silicon carbide seal
Specifications:
Suction and Discharge: 1" x 1" hose Material: Aluminum Maximum Flow: 18 GPM
Maximum Head: 15'
Features: Port configuration with directional volute, Dual 18" long 14 AWG red (positive) and black (negative) power leads, motor enclosure that is splash and weather resistant
Specifications:
Suction and Discharge: 1" x 1" hose Material: Aluminum Maximum Flow: 18 GPM
Maximum Head: 15'
Features: Port configuration with directional volute, Dual 18" long 14 AWG red (positive) and black (negative) power leads, motor enclosure that is splash and weather resistant
Please see below for the MP Pump MP50412 exploded view and parts list to help find the correct part numbers to each replacement part if you're only needing specific items and not having to replace the pump. If you feel a repair kit is all that is necessary to return your MP Pump MP50412 back to factory performance, please see the bottom of the page under the "Related Products" section for the MP50412 seal kit.

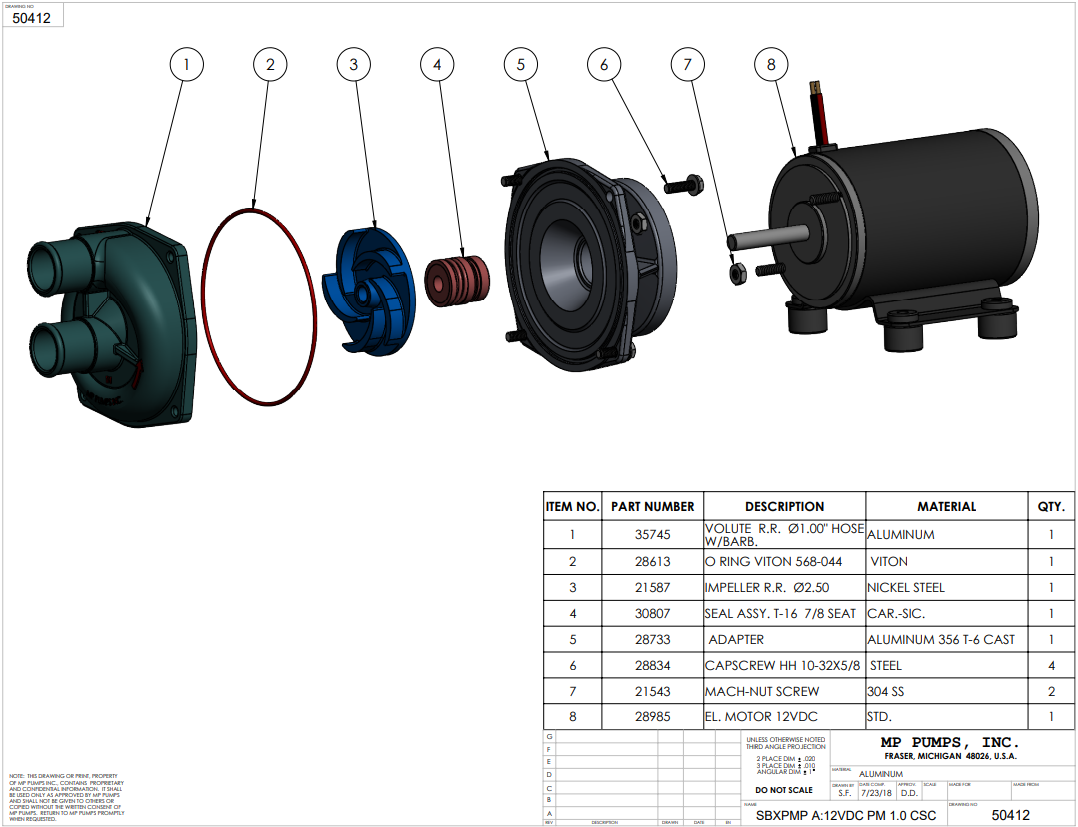

EXPLODED VIEW AND PARTS LIST
MP50412 Drawing
EXPLODED VIEW AND PARTS LIST
MP50412 Drawing
