Manufacturer: MP Pumps
Manufacturer Model: MP36058
Part Number: MP36058
$4219.00 for 1+
HHLF Pedestal PumPAK, Bronze construction, 6.7" impeller, Carbon/Ceramic/Viton seal
Specifications:
Suction and Discharge: 2" x 2" NPT Material: Bronze Maximum Flow: 140 GPM
Maximum Head: 190'
Specifications:
Suction and Discharge: 2" x 2" NPT Material: Bronze Maximum Flow: 140 GPM
Maximum Head: 190'
Please see below for the MP Pump MP36058 exploded view and parts list to help find the correct part numbers to each replacement part if you're only needing specific items and not having to replace the pump. If you feel a repair kit is all that is necessary to return your MP Pump MP36058 back to factory performance, please see the bottom of the page under the "Related Products" section for the MP36058 seal kit.

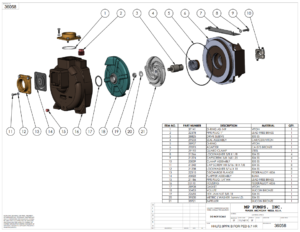

EXPLODED VIEW AND PARTS LIST

MP36058 Drawing

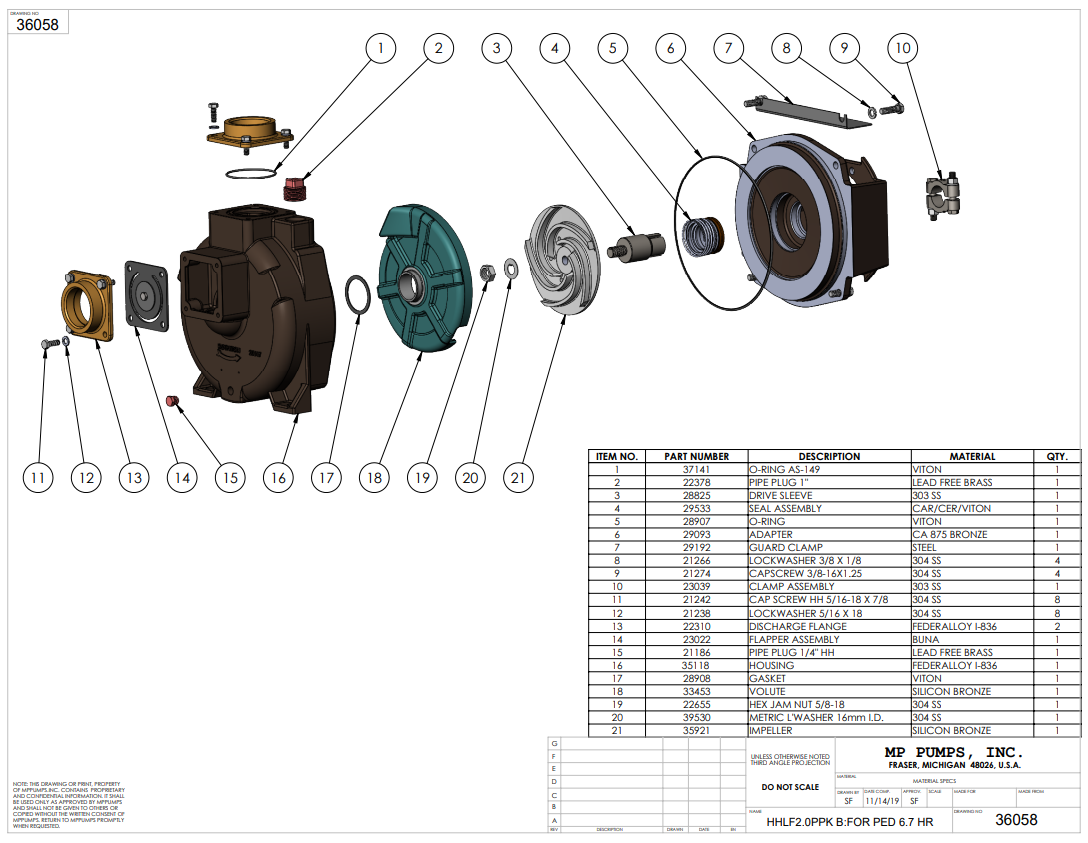

EXPLODED VIEW AND PARTS LIST

MP36058 Drawing
