Manufacturer: MP Pumps
Manufacturer Model: MP36304
Part Number: MP36304
$3023.00 for 1+
HHLF Pump, Cast iron construction, 3 phase 7.5HP motor with a 184TC face, 6.7" impeller, Silicon carbide mechanical seal
Specifications:
Suction and Discharge: 2" x 2" NPT Material: Cast Iron Maximum Flow: 140 GPM
Maximum Head: 190'
Specifications:
Suction and Discharge: 2" x 2" NPT Material: Cast Iron Maximum Flow: 140 GPM
Maximum Head: 190'
Please see below for the MP Pump MP36304 exploded view and parts list to help find the correct part numbers to each replacement part if you're only needing specific items and not having to replace the pump. If you feel a repair kit is all that is necessary to return your MP Pump MP36304 back to factory performance, please see the bottom of the page under the "Related Products" section for the MP36304 seal kit.

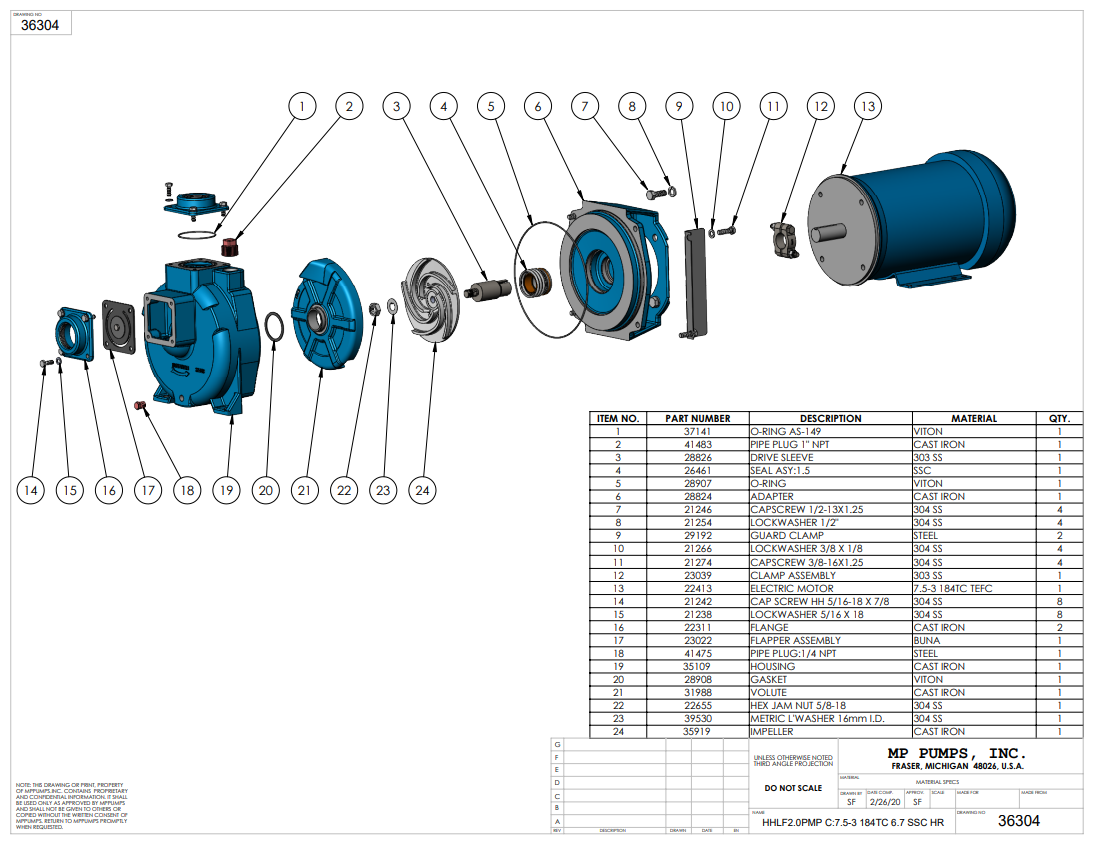

EXPLODED VIEW AND PARTS LIST

MP36304 Drawing
EXPLODED VIEW AND PARTS LIST

MP36304 Drawing
