Manufacturer: MP Pumps
Manufacturer Model: MP39277
Part Number: MP39277
$5639.00 for 1+
HHLF Pump, Bronze construction, 3 phase 10HP motor with a 215TC face, 6.7" impeller, Carbon/Ceramic/Viton seal
Specifications:
Suction and Discharge: 2" x 2" NPT Material: Bronze Maximum Flow: 140 GPM
Maximum Head: 190'
Specifications:
Suction and Discharge: 2" x 2" NPT Material: Bronze Maximum Flow: 140 GPM
Maximum Head: 190'
Please see below for the MP Pump MP39277 exploded view and parts list to help find the correct part numbers to each replacement part if you're only needing specific items and not having to replace the pump. If you feel a repair kit is all that is necessary to return your MP Pump MP39277 back to factory performance, please see the bottom of the page under the "Related Products" section for the MP39277 seal kit.

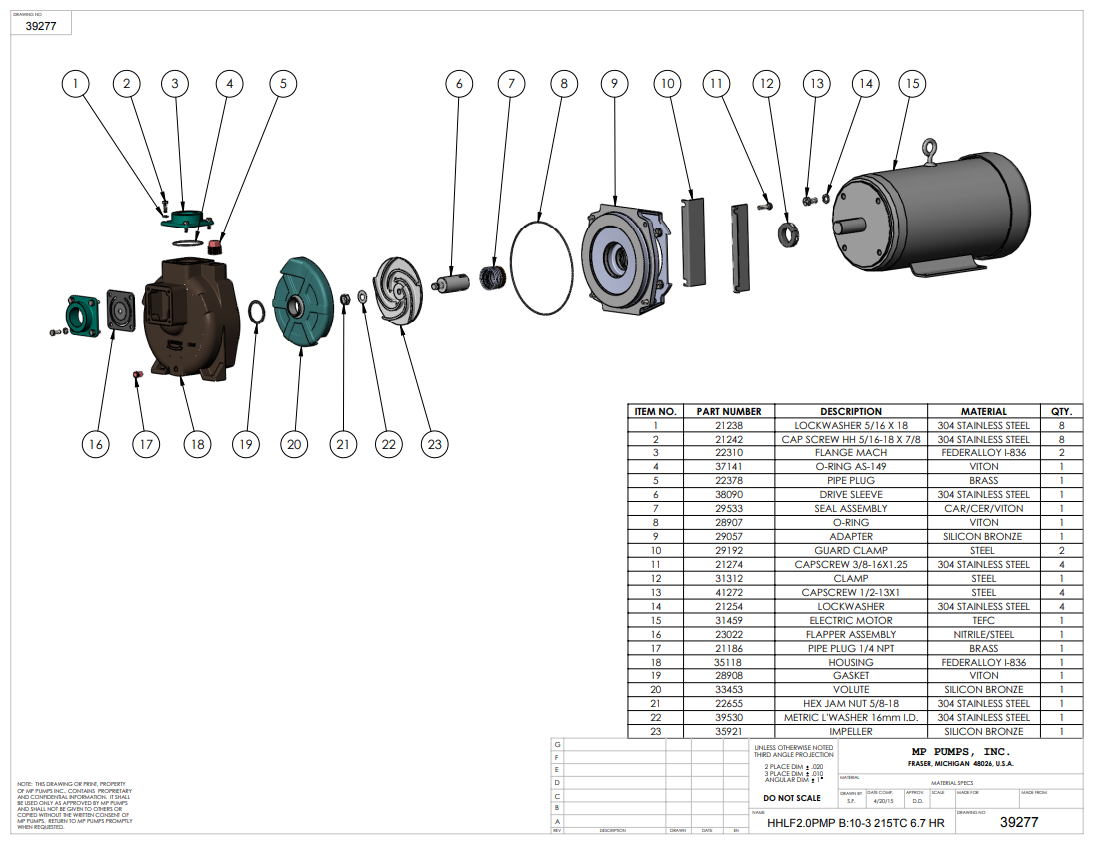

EXPLODED VIEW AND PARTS LIST
MP39277 Drawing
EXPLODED VIEW AND PARTS LIST
MP39277 Drawing
